Deployment Overview

This document covers the deployment architecture and process for the portfolio application.

Deployment Stack

| Component | Technology | |-----------|------------| | Build | OpenNext (Next.js to Lambda) | | Infrastructure | AWS CDK | | CI/CD | GitHub Actions | | CDN | CloudFront | | Compute | Lambda@Edge + Regional Lambda | | Storage | S3 + DynamoDB |

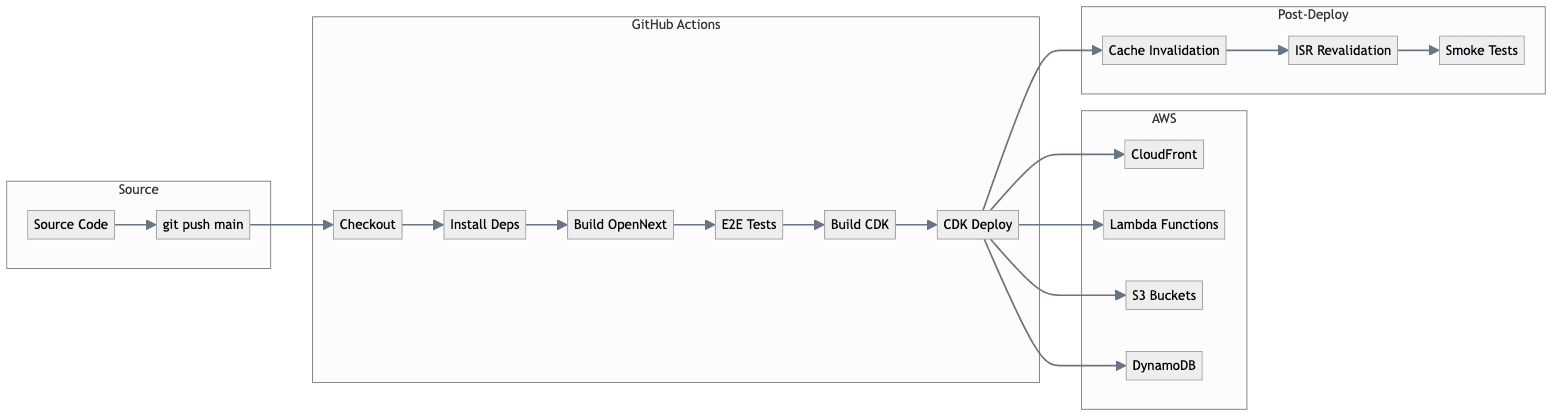

Deployment Flow

Deployment Flow

Pre-requisites

AWS Account Setup

  1. OIDC Provider - GitHub Actions assumes IAM role via OIDC
  2. Deploy Role - IAM role with CDK deployment permissions
  3. Domain (optional) - Route53 hosted zone
  4. Certificate (optional) - ACM certificate in us-east-1

GitHub Configuration

Repository variables:

  • AWS_REGION - Deployment region (default: us-east-1)
  • CDK_DEPLOY_ROLE_ARN - IAM role for deployment
  • APP_DOMAIN_NAME - Custom domain
  • NEXT_PUBLIC_SITE_URL - Public URL

Repository secrets:

  • GH_TOKEN - GitHub PAT for API access
  • REVALIDATE_SECRET - ISR revalidation secret
  • NEXTAUTH_SECRET - Auth session secret

Quick Deploy

First-Time Setup

  1. Configure AWS credentials:
aws configure
  1. Bootstrap CDK (once per account/region):
cd infra/cdk
pnpm exec cdk bootstrap
  1. Build and deploy:
# From root
pnpm build
cd infra/cdk
pnpm deploy

Subsequent Deploys

Push to main triggers automatic deployment:

git push origin main

Or manual deployment:

pnpm build
cd infra/cdk && pnpm deploy

Environment Tiers

| Environment | Branch | Domain | Purpose | |-------------|--------|--------|---------| | Production | main | example.com | Live site | | Staging | staging | staging.example.com | Pre-production testing | | Development | feature/* | - | Local development |

Post-Deploy Steps

After each deployment:

  1. Cache Invalidation - CloudFront paths invalidated
  2. Revalidation - ISR caches refreshed via API
  3. Smoke Tests - Automated integration tests

Rollback

Quick Rollback

Revert to previous commit:

git revert HEAD
git push origin main

CDK Rollback

CloudFormation automatically rolls back failed deployments. For manual rollback:

cd infra/cdk
pnpm exec cdk deploy --rollback

Monitoring

Post-deployment monitoring:

  1. CloudWatch Logs - Lambda execution logs
  2. CloudWatch Metrics - OpenAI cost tracking
  3. CloudFront Metrics - Request/error rates
  4. Smoke Test Results - GitHub Actions artifacts
