docs/deployment/ci-cd.md

CI/CD Pipeline

The portfolio uses GitHub Actions for continuous integration and deployment.

Workflows

Deploy Workflow

File: .github/workflows/deploy.yml

Triggers:

  • Push to main branch
  • Manual workflow dispatch

Jobs:

  1. Build & Deploy

    • Install dependencies
    • Build Next.js with OpenNext
    • Run E2E tests (fixture mode)
    • Build CDK
    • Deploy to AWS
    • Invalidate CloudFront cache
    • Revalidate ISR caches

  2. Smoke Tests

    • Run real API tests against deployed app
    • Run real UI tests against deployed app

Test Workflow

File: .github/workflows/test.yml

Triggers:

  • Pull requests to main

Jobs:

  • Build Next.js
  • Run Playwright E2E tests
  • Upload test report artifacts

Pipeline Stages

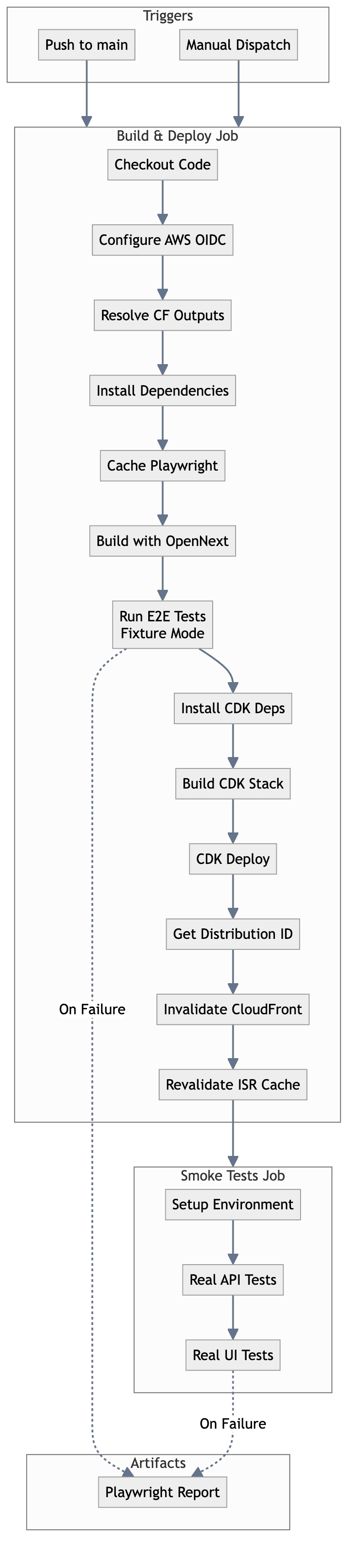

CI/CD Pipeline

Skip Tests Mode

Add [skip] to commit message to skip tests:

git commit -m "Quick fix [skip]"

Or use workflow dispatch with skip_tests: true.

AWS Authentication

Uses OIDC (OpenID Connect) for secure, keyless authentication:

- name: Configure AWS credentials (OIDC)
  uses: aws-actions/configure-aws-credentials@v4
  with:
    role-to-assume: ${{ vars.CDK_DEPLOY_ROLE_ARN }}
    aws-region: us-east-1

Required IAM Permissions

The deploy role needs:

  • CloudFormation full access
  • Lambda full access
  • S3 full access
  • DynamoDB full access
  • CloudFront full access
  • Route53 (if using custom domain)
  • ACM (if using custom domain)
  • Secrets Manager read
  • IAM role management (for Lambda execution roles)

Environment Variables

From Vars (Non-sensitive)

env:
  AWS_REGION: ${{ vars.AWS_REGION }}
  APP_DOMAIN_NAME: ${{ vars.APP_DOMAIN_NAME }}
  PORTFOLIO_GIST_ID: ${{ vars.PORTFOLIO_GIST_ID }}

From Secrets

env:
  GH_TOKEN: ${{ secrets.GH_TOKEN }}
  REVALIDATE_SECRET: ${{ secrets.REVALIDATE_SECRET }}
  NEXTAUTH_SECRET: ${{ secrets.NEXTAUTH_SECRET }}

Caching

pnpm Cache

- uses: actions/setup-node@v4
  with:
    cache: 'pnpm'

Playwright Cache

- uses: actions/cache@v4
  with:
    path: ~/.cache/ms-playwright
    key: playwright-chromium-${{ runner.os }}-${{ hashFiles('**/pnpm-lock.yaml') }}

Artifacts

Test reports uploaded on failure:

- name: Upload test results
  if: failure()
  uses: actions/upload-artifact@v4
  with:
    name: playwright-report
    path: playwright-report/
    retention-days: 30

Cache Invalidation

Post-deploy cache invalidation:

- name: Invalidate CloudFront cache
  run: |
    aws cloudfront create-invalidation \
      --distribution-id ${{ steps.get-distribution.outputs.distribution_id }} \
      --paths "/blog" "/blog/*" "/projects" "/projects/*" "/api/*"

Revalidation

ISR cache revalidation via API:

- name: Revalidate server caches
  run: |
    curl -X POST "${TARGET_URL}/api/revalidate" \
      -H "x-revalidate-secret: ${REVALIDATE_SECRET}" \
      -d '{"paths":["/projects","/blog"],"tags":["github-repos","posts"]}'

Concurrency

Prevents overlapping deployments:

concurrency:
  group: deploy-${{ github.ref }}
  cancel-in-progress: true

Troubleshooting

Build Failures

  1. Check OpenNext build output
  2. Verify all environment variables set
  3. Check for TypeScript errors

Test Failures

  1. Review Playwright report artifact
  2. Check if fixtures are properly loaded
  3. Verify test environment configuration

Deploy Failures

  1. Check CloudFormation events in AWS console
  2. Review CDK diff output
  3. Verify IAM permissions

Smoke Test Failures

  1. Confirm deployment completed
  2. Check CloudFront distribution is enabled
  3. Verify DNS propagation (custom domain)
