Architecture Overview

This document provides a high-level overview of the portfolio application architecture.

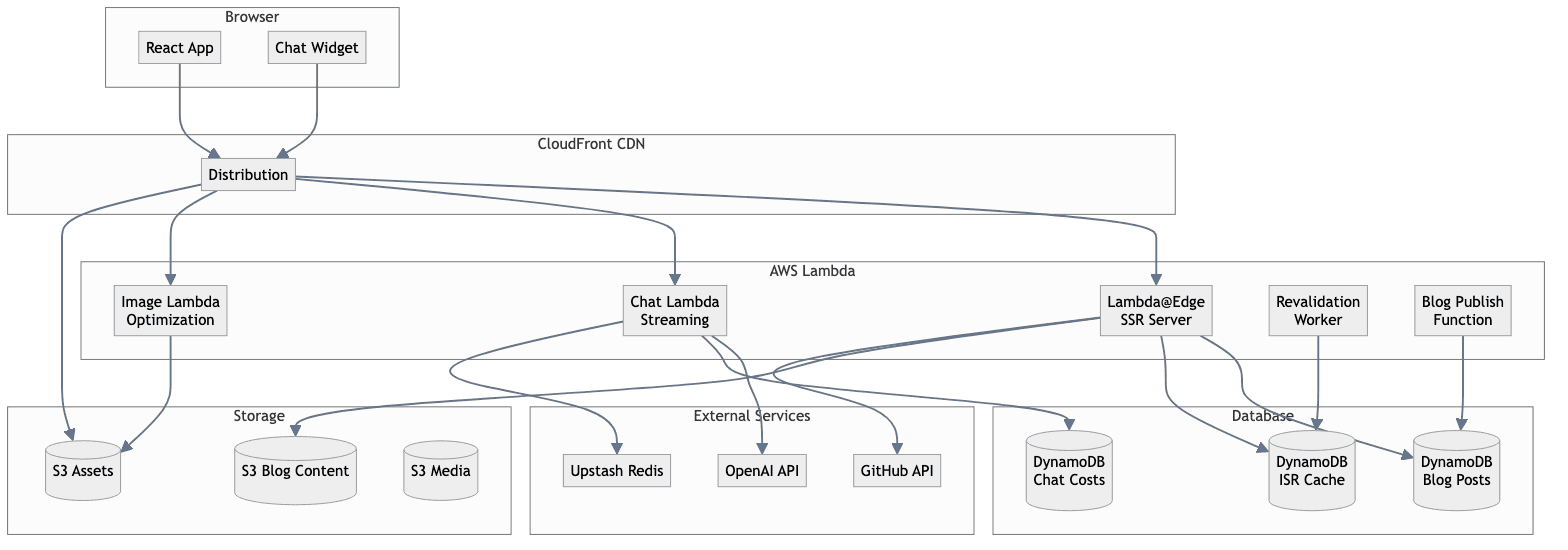

System Diagram

System Overview

Core Components

Frontend (Next.js 15)

  • App Router - File-based routing with React Server Components
  • React 19 - Latest React features including Server Actions
  • TailwindCSS - Utility-first styling
  • Framer Motion - Animations and transitions

Backend (AWS Lambda)

  • Lambda@Edge - Next.js SSR at edge locations
  • Regional Lambda - Chat streaming with Function URLs
  • API Routes - RESTful endpoints for data access

Data Layer

  • DynamoDB - Blog posts, ISR cache, chat cost tracking
  • S3 - Static assets, blog content, media files
  • Secrets Manager - Runtime secrets (API keys, OAuth secrets)
  • Upstash Redis - Rate limiting

Observability

  • CloudWatch Metrics - OpenAI cost tracking
  • CloudWatch Alarms - Budget alerts via SNS
  • Structured Logging - Lambda log groups

Request Flow

Page Request

  1. User requests /blog/my-post
  2. CloudFront receives request
  3. Lambda@Edge executes SSR
  4. DynamoDB queried for post data
  5. React components render
  6. HTML returned through CloudFront

Chat Request

  1. User sends chat message
  2. CloudFront routes to chat Lambda
  3. Lambda validates request
  4. OpenAI API called with streaming
  5. Response streamed back through Function URL

Static Asset

  1. User requests /_next/static/chunk.js
  2. CloudFront checks cache
  3. If miss, fetches from S3
  4. Cached at edge for future requests

Monorepo Structure

/
├── src/                    # Next.js application
│   ├── app/               # App Router routes
│   ├── components/        # React components
│   └── lib/               # Utilities
├── packages/              # Shared packages
│   ├── chat-*            # Chat system packages
│   ├── github-data/      # GitHub integration
│   └── test-support/     # Testing utilities
├── infra/cdk/            # AWS infrastructure
└── generated/            # Preprocessed data

Key Design Decisions

OpenNext for AWS

Uses OpenNext to compile Next.js for AWS Lambda instead of Vercel:

  • Full control over infrastructure
  • Cost optimization
  • Custom Lambda configurations
  • ISR with DynamoDB/S3 cache

Lambda@Edge vs Regional

  • Lambda@Edge: SSR pages for low latency
  • Regional Lambda: Chat streaming (requires Function URL streaming)

Monorepo with pnpm

  • Shared code between packages
  • TypeScript source imports (no build step for most packages)
  • Workspace protocol for internal dependencies
